Un8-300-P Rotary Pouch Packing Line for Powder
| Automatic Grade: | Automatic |
| Application: | Cosmetics, Tea, Vegetable, Fruit, Fish, Meat,Snack, Rice, Flour, Seasoning, Food |
| Type: | Filling and Sealing Machine |
| Forming Function: | Filling, Seal |
| Driven Type: | Mechanical |
| Material Type: | Powder |
| Model NO.: | UN8-300-P |
| Packaging Material: | Film |
| Model: | Un8-300-P |
| Packaging: | Sachet, Pouch |
| Packing Speed: | 15-30bags/Min (Depended on The Product andFilling |
| Bag Size: | W:150-300mm L:150-400mm |
| Filling Range: | 5-1500g |
| Total Power: | 4.5kw |
| Bag Types: | All Kinds of Compound Bags, Such as Flat Bag,3-Si |
| Voltage: | 380V 50Hz |
| Overall Dimensions: | 4650*2000*2800mm |
| Brand: | Haibi |
| Trademark: | HAIBI |
| Specification: | UN8-300-P |
| Transport Package: | Wooden Case |
| Origin: | Chin |
| Product Description |
| Application Area: |

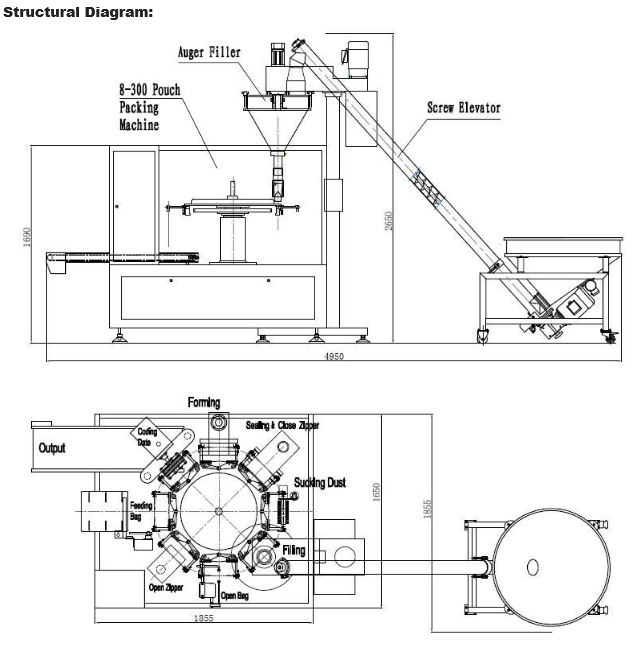

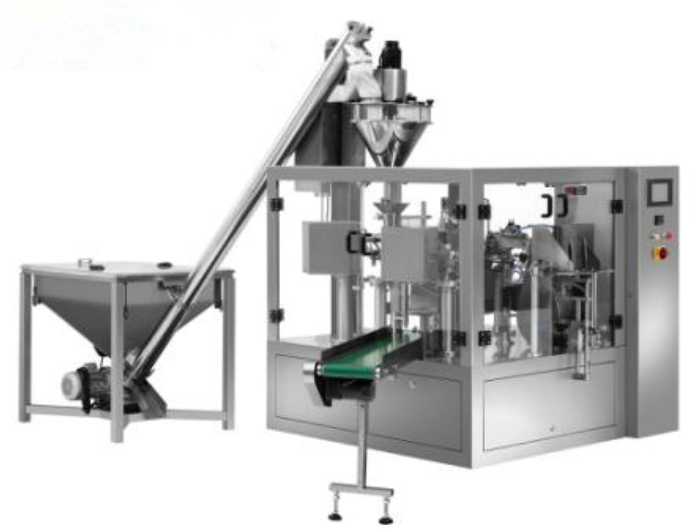

| HB-300 rotary packingline mainly installs rotary packing machine, auger filler and screwelevator, suitable for packing all kinds of powder, such as milk powder,coffee, spices, additives etc... |
| Main Features: |
| 1. Wide range ofpouches: All kinds of pre-made pouches such as flat and stand-up pouches(with/without zip). 2. Easy to operate: PLC and color panel, fault indication on the panel. 3. Easy to adjust: Only about 10 minutes to change differentpouches. 4. Frequency control: Speed can be adjusted by frequency conversionwithin the range. 5. No pouch/incorrect pouch opening-no fill-no seal, machine alarm. 6. Machine alarm and stop when the inadequate airpressure. 7. Hygienic construction, the product contact partsare adopted sus304 stainless steel. 8. Imported engineering plastic bearings, no needto oil, no contamination. 9. Oil-free vacuum pump, avoid the pollution of theproduction environmental. |
